Deciphering Sprinter Models
Ever wonder what the differences between Sprinter Van models are?
901 - Sprinter
902 - Sprinter
903 - Sprinter
904 - Sprinter
905 - Sprinter
906 - Sprinter NCV3
907 - Sprinter VS30 (RWD)
910 - Sprinter VS30 (FWD) yes, front wheel drive!!!
M2CA144 - SPRINTER 2500 Cargo Van 144" WB
M2CA170 - SPRINTER 2500 Cargo Van 170" WB Low Roof
M2CA170E - SPRINTER 2500 Cargo Van 170" WB Ext
M3CA144 - SPRINTER 3500 Cargo Van 144" WB (Dually)
M3CA170 - SPRINTER 3500 Cargo Van 170" WB (Dually)
M3CA170E - SPRINTER 3500 Cargo Van 170" WB Ext (Dually)
M2CV144 - SPRINTER 2500 Crew Van 144" WB
M2CV170 - SPRINTER 2500 Crew Van 144" WB
M2PV144 - SPRINTER 2500 Passenger Van 144" WB
M2PV170 - SPRINTER 2500 Passenger Van 170" WB
M3CC144 - SPRINTER 3500 Chassis Cab 144" WB (Dually)
M3CC170 - SPRINTER 3500 Chassis Cab 170" WB (Dually)
D03 = High Roof
D05 = Super High Roof
XB5 = GVWR 11,030lbs
XA4 = GVWR 10,140lbs

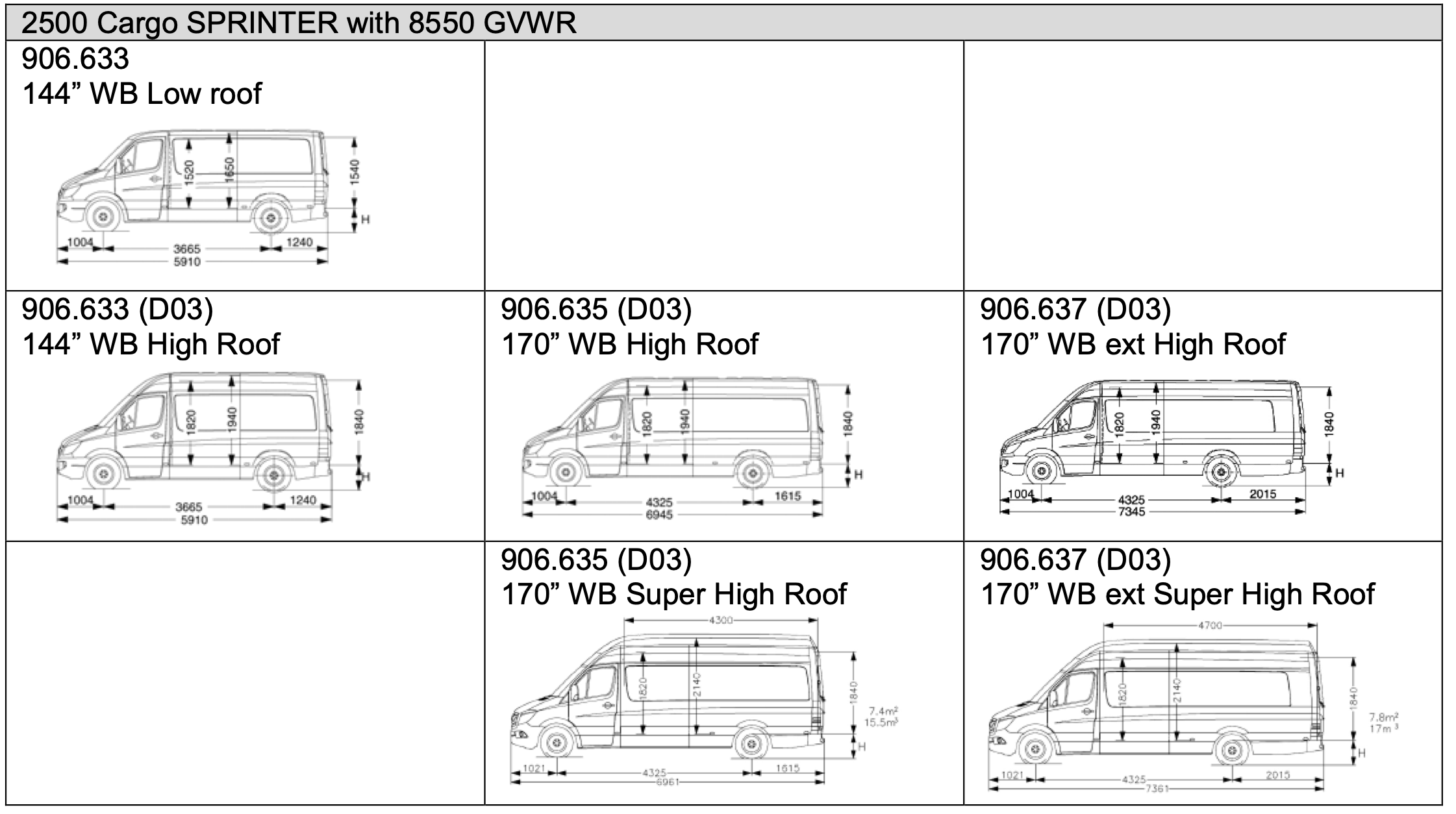

Examples for 906 Sprinters (NVC3)
Decrypting your Sprinter Van VIN
We’ve confirmed this works for NVC3 from 2010 - 2018. T1N sprinters are a bit tricky as well as those Dodge years that happened with both T1N vans as well as NVC3 vans. The newer VS30 2019 - present varies a bit. We’ll try and update this posting as we find out more information. We hope this is a good cheat sheet to deciphering your VIN.
T1N Options List
1212 No code designation available
1332 No code designation available (Aussie)
172 FUEL PREHEATER
178 No code designation available
580 AIR CONDITIONER
614K No code designation available
910 No code designation available
9147 PAINT COLOR ARCTIC WHITE MB 9147
935K No code designation available
936K No code designation available
A50 FRONT AXLE WITH INCREASED CARRYING LOAD
A71 DIFFERENTIAL LOCK, REAR AXLE
AC4 AXLE RATIO I = 4,857
AC6 AXLE RATIO I = 3.727
B90 WITHOUT LOAD-DEPENDENT BRAKE VALVE
BB0 BRAKING SYSTEM WITH ABS/ASR OR ABS/ETS
BB3 ELECTRONIC STABILITY PROGRAM (ESP)
BW1 ABS/ASR DISCONTINUED
C38 REAR SPRING FOR 3.88-T WEIGHT VARIANT
C39 COMFORT REAR SPRING FOR WEIGHT VARIANT 3,880 KG
C40 FRONT AXLE STABILIZER
C42 STABILIZER,REAR AXLE UNDER THE FRAME
C43 REAR-AXLE STABILIZER REINFORCED LOWER FRAME
C45 H.D. FRONT AXLE STABILIZER
C47 H.D. SHOCK ABSORBERS
CM6 BUMPER WITH CHROME INSERTS
D03 HIGH ROOF
D50 PARTITION PANEL FULL-WIDTH
D51 CONT. COMPRTMNT.WALL WITH 1 WINDOW
D62 PRE-INSTALLATION FOR RETROFIT COMPRTMNT.WALL
D64 PARTITION PANEL WITH SLIDING DOOR
E21 HEAVY-DUTY BATTERY/BATTERIES
E43 13-POLE TRAILER PLUG SOCKET
E58 ELECTRICAL COMPONENTS FOR NAFTA TRAILER SOCKET
E88 CIGAR LIGHTER
EE8 12V BATTERY 100 AH
EF5 RADIO SOUND 10 WITH CASS.PLAYER AND 2 SPEAKERS
EF7 RADIO SOUND 30 W. SINGLE CD PLAYER AND 2 SPEAKERS
EK1 TERMINAL STRIP FOR ELECTRICAL CONNECTION
ES5 INSTRUMENT PANEL CHARGING PACKAGE
F61 INSIDE REARVIEW MIRROR
F66 LOCKABLE GLOVE COMPARTMENT
F68 HEATED AND ELECTRICALLY ADJUSTABLE OUTSIDE MIRROR
F76 GRAB HANDLE CO-DRIVER SIDE
FG7 STORAGE BOX AT CO-DRIVER SEAT
FG8 CUP HOLDER(S), FRONT
FS4 LEFT AND RIGHT AUXILIARY MIRRORS NOT HEATED
FY6 CENTRAL LOCKING WITH RADIO REMOTE CONTROL NAFTA
FZ9 TWO ADDITIONAL MASTERS
FZ1 CENTRAL LOCKING WITH REMOTE CONTROL
G40 AUTOMATIC TRANSMISSION
GH3 TRANSMISSION G32 - 5/5,0
H01 HEAT INSULATION CARGO AREA/PASSENGER COMPARTMENT
H04 HEAT INSULATION DRIVER CAB
H12 HOT WATER ADDITIONAL HEATER
H13 ADDITIONAL HEAT EXCHANGER, REAR
H16 SEAT HEATER FOR DRIVER
H20 HEAT-ABSORBING GLASS ALL ROUND
H21 ALL-RND.HEAT ABSORB.GL.W.BAND FLTR ON FR.WINDOW
H22 HEATED REAR WINDOW
H86 TIMER FOR HEATER BOOSTER
HH9 SEMI-AUTOMATICALLY CONTROLLED TEMPMATIC A/C
HZ9 HEATER BOOSTER, DIESEL
IL2 EXPORT CODE
IL6 METALLIC FINISH
J10 SPEEDOMETER KM/H
J11 SPEEDOMETER MPH AND KM/H
J19 TACHOGRAPH 1 DAY / 2 DRIVERS AUTOMATIC (EU)
J61 HYDRAULIC BRAKE TEST CONNECTION
J64 MAINTENANCE INDICATOR FOR DRY AIR FILTER
J65 OUTSIDE TEMPERATURE INDICATOR
JA1 INDICATOR LAMP FOR WIPER FLUID LEVEL
JK1 "SOFT LOOK" INSTRUMENT PANEL
JW0 BACKUP WARNING SYSTEM
JW6 ASSYST SERVICE INTERVAL INDICATOR
K60 TAIL PIPE LEADING STRAIGHT TO THE REAR
KB0 MAIN TANK 100 LITER
KL1 FUEL-LEVEL SENSOR FOR AUXILIARY HEATER
KL5 FUEL FILTER WITH WATER SEPARATOR
L05 AUTOMATIC DAYTIME RUNNING LIGHTS FOR USA/CANADA 🇺🇸🇨🇦
L62 READING LAMP
L65 COURT. LIGHTS F. TRUNK/PASS. COMP. W. DOOR CONT.
L94 ELIMINATION OF PARKING LIGHT
LB5 CENTER HIGH-MOUNTED BRAKE LAMP
LL3 FRONT TRAFFICATOR, LARGE VERSION (TURN SIGNALS)
M35 14 V/115 A ALTERNATOR
M39 14 V/150 A ALTERNATOR
M40 ALTERNATOR 14 V / 200 A
M96 FUEL PREHEATER
MB0 OIL DIP STICK FOR COLD MEASUREMENT
MC0 ENGINE OM 647 DE 27 LA 115 KW (156 HP) 3800/RPM
MD2 SPEED LIMITER 100 KM/H
ME9 LOW EMISS. ENG. AS PER EPA 04 (USA TRANSIENT TEST)🇺🇸
MF1 LOW-EMISSION ENGINE AS PER CFFP (NAFTA)
MF2 ENGINE REGISTERED FOR "CARB STATES"
MQ5 ENGINE OM611 POWER STAGE III
MQ6 ENGINE OM612 DE27 LA 115KW (156HP) 3800RPM
MS1 TEMPOMAT (CRUISE CONTROL)
MS3 ENGINE VERSION EURO III
P47 MUDFLAP FRONT
P48 REAR MUD FLAPS
Q20 TRLR COUPLING (JAW-TYPE COUPLING 243/U 115)
Q24 NAFTA TRAILER CROSSMEMBER, TOWING CAPACITY 5000LBS
R65 SPARE WHEEL CARRIER UNDER FRAME END
R87 SPARE WHEEL
RA5 DROP CENTER RIMS 6 J X 16 H2 F. 225/75 R16
RF8 TIRE MANUFACTURER MICHELIN (80)
RF9 TIRE MANUFACTURER GOODYEAR (90)
RG5 225/70 R15 TIRES
RG8 TYRES 225/75 R16
RM0 ALL-SEASON TIRE
RM7 SUMMER TIRES
RM9 TIRE MAKE SPECIAL REQUEST
RS0 STEEL WHEELS 6J X 15 (only on the T1N 118?)
S20 CO-DRIVER'S FOLDING SEAT
S22 DRIVER'S SEAT ARMREST
S23 CO-DRIVER'S SEAT DOUBLE OCCUPANCY
S25 CO-DRIVER'S SEAT ARMREST
S31 CONVENIENCE HEAD RESTRAINTS FOR PASS. COMP.
S91 ELIMINATION OF CO-DRIVER'S SEAT
S99 PASSENGER SEAT FRAME DISCONT.
SA5 AIRBAG DRIVER SIDE
SA6 CO-DRIVER'S AIR BAG
SB1 DRIVER SEAT, COMFORT
SB2 PASSENGER SEAT, COMFORT
SD2 SAFETY DEV. ON B-PILLAR WHEN FRONT SEATS DELETED
SK0 DRIVER COMFORT HEAD RESTRAINT
SK1 FRONT PASSENGER COMFORT HEAD RESTRAINT
SS1 VENICE SEAT COVER FABRIC
SS4 SANTOS FABRIC
T11 DOOR REINFORCEMENT IN AREA OF LOCK
T16 SLIDING DOOR RIGHT
T74 GRAB HANDLE FOR ENTRANCE
T85 ENTRANCE GRAB AT CORNER PILLAR AT LEFT REAR
T86 ENTRANCE GRAB AT CORNER PILLAR AT RIGHT REAR
U44 DRALON VELOUR
U61 SEATING, PASS.COMP.,2ND BENCH SEAT, 2ND ROW
U62 SEATS PASS. COMPARTMENT 3X SEATBENCH ROW 1 NARROW
U63 SEATING,PASS.COMP.,3RD BENCH SEAT,2ND ROW
U64 PASSEN. COMP. SEATS, 3-PASSEN. BENCH SEAT, 3RD ROW
V21 DELUXE INTERIOR TRIM
V31 WINDOW PILLAR PANELING
V36 HEADLINER
V42 SIDE WALL ANCHORING RAILS AT BELT RAIL
V43 WOOD FLOOR
V46 PASSENGER COMPARTMENT FLOOR MATS
V50 ELECTRIC WINDOW LIFTER, 2-WAY
V64 ASHTRAY IN PASSENGER COMPARTMENT
VA3 LOAD COMPARTMENT INNER TRIM UP TO ROOF WASHABLE
W18 LEFT FRONT SLIDING WIND. IN SIDE WALL/SLIDING DOOR
W19 RIGHT FR. SLIDING WIND. IN SIDE WALL/SLIDING DOOR
W51 REAR-END DOOR, DOUBLE-WING WITH WINDOW
W54 REAR-END DOORS, DOUBLE-WING, OPENING TO SIDE WALL
W73 REAR-END DOOR STEP
W79 WIDE STEP AT REAR, HIGHER POSITIONING
WM0 SPRINTER FACELIFT 2003
WN3 STEUERCODE WERK
X42 PLATES / PRINTED MATERIALS ENGLISH
X92 COMPANY LOGO (MERCEDES-BENZ) DELETED
XC8 VIN VISIBLE FROM OUTSIDE
XL8 WEIGHT VARIANT 3880 KG
XY2 MODEL YEAR 2
XY3 MODEL YEAR 3
XY5 MODEL YEAR 5
XY6 MODEL YEAR 6
Y11 BRACKETS USED FOR WARNING TRIANGLE
Y17 PRE-FITTINGS FOR FIRE EXTINGUISHER
Y26 WHEEL CHOCK
Y43 HYDRAULIC JACK
Z41 APPROVAL AS TRUCK
Z71 LARGE SCALE TEST SPEC. CONT.
Z75 BODYSHELL REINFORCEMENT
Z81 TIE-DOWN EYES
Z90 UNDERBODY CONSERVATION DELETED
ZB0 COUNTRY-SPECIFIC DHL PACKAGENG
ZB6 PRODUCTION PARTS KIT
ZG1 ENGAGEABLE ALL-WHEEL DRIVE
ZJ9 NAFTA (USA, CANADA, MEXICO) NATIONAL VERSION 🇺🇸 🇨🇦
ZR3 AUSSTEUERUNG ENDE AUFBAULINIE ((CONTROLLING END ASSEMBLY LINE))
ZU7 CANADIAN COUNTRY VERSION 🇨🇦
ZU8 USA COUNTRY VERSION 🇺🇸
ZX8 DODGE EXECUTION
ZU8 USA COUNTRY VERSION🇺🇸
ZX9 FREIGHTLINER EXECUTION
M35 14 V/115 A ALTERNATOR
M39 14 V/150 A ALTERNATOR
M40 ALTERNATOR 14 V / 200 A
M47 ALTERNATOR FOR FUEL ECONOMY combines with M60
M60 ALTERNATOR 14 V/250 A
NVC3 Options List
AR2 - Axle ratio 3.92
AR3 - Axle ratio 4.18
BB3 - Electronic Stability Program ESP
C38 - Rear spring for 3.88-t weight version
C39 - Rear Springs, comfort, 2500
C40 - Stabilizer front axle
C42 - Stabilizer Bar, Rear Axle
C45 - Stabilizer reinforced at front axle
C47 - Shock absorbers reinforced
CF2 - Suspension w/Front & Rear Stabilizer
CF4 - Suspension w/H.D. Front & Rear Stabilizer
CL1 - Adjustable steering wheel
CT1 - Rear Spring Vibration Absorbers
D03 - High roof
D93 - Deletion Cargo Partition
E07 - Hill-Start Assist
E30 - Starter Battery Disconnect
ED8 - Parametric Special Module (PSM) Preparation
EE8 - Battery 12V 100 Ah
EK1 - Body builder connector under driver seat
EL8 - Radio Speakers, 5 Front
EL9 - Radio Speakers, 5 Front & 8 Rear
EN0 - Radio Sound 5 (AM/FM, Single CD, MP3)
ES0 - Jump start terminal
ES2 - 12 V Power Outlet Rear Compartment
ES7 - AUX-IN Interface
F61 - Interior Mirror
FF0 - Coat hooks
FF5 - Shelf above windshield
FI1 Remote Key fob - 315 MHZ
FI3 - Tire pressure monitoring
FS2 - Exterior mirror extended (96")
G40 - Automatic transmission - 5 speed
H00 - Warm/cool air duct to passenger compartment
H20 - Windshield tinted
H22 -Defroster - rear window
HH9 - Air conditioning front
J11 - Speedometer, km/miles
J58 - Seat belt reminder for driver
JW2 - Deactivation lamp monitoring
failure
K60 - Exhaust straight to rear
Seat belt reminder for driver
Heater - auxiliary elect. hot air
VS30
Z4X Production In Charleston
Z4V Production in Düsseldorf
