NVC3+VS30 Sprinter Wheels

Ever wonder what wheels are out there? What fits a 6 bolt Sprinter Van? Here’s some research we’ve done to find a (never complete) collection of wheels that will fit a Sprinter.

The fine folks at VanCompass have done a ton of homework on what tires will fit both on stock Sprinters as well as one’s that are lifted. BTW, they make a killer lift kit for 2WD and 4WD vans.

Here’s a full tire size chart to help with all wheel sizes

For T1N Sprinters check out our other post here ->

2WD 2007-2018 NVC3 Sprinter (Mercedes Benz, Dodge, Freightliner)

Bolt Pattern: 6 x 130mm, 84.1mm bore - Stock tire size: 245/75/16 (not dually)

Factory Steel: 16 x 6.5, 54mm offset - Factory Alloy: 16 x 6.5, 63mm offset

• 275/70/16 Largest size before you need a lift for a 16”

• 275/65/17 Largest size before you need a lift for a 17”

With 2” VanCompass Lift

• 265/75/16 - Ideal size (What we had installed for 50,000 miles)

• 285/75/16 Largest size with front mudflap and front bumper trimming and 14mm wheel spacers

• 285/70/17 Largest size with front mudflap and front bumper trimming and 14mm wheel spacers

Mercedes Benz Stock Steelies

16x7 / 6 × 130” / Center Bore (CB): 84.1 / Thread size (THD): 14 × 1.5

Mercedes Benz NVC3 Stock Alloys

16x7 / 6 × 130” - Silver stock - Black custom powercoat

Rotiform

Mandrus Stark

Mandrus Atlas 6

16x7 / 17x7.5 / 18x8

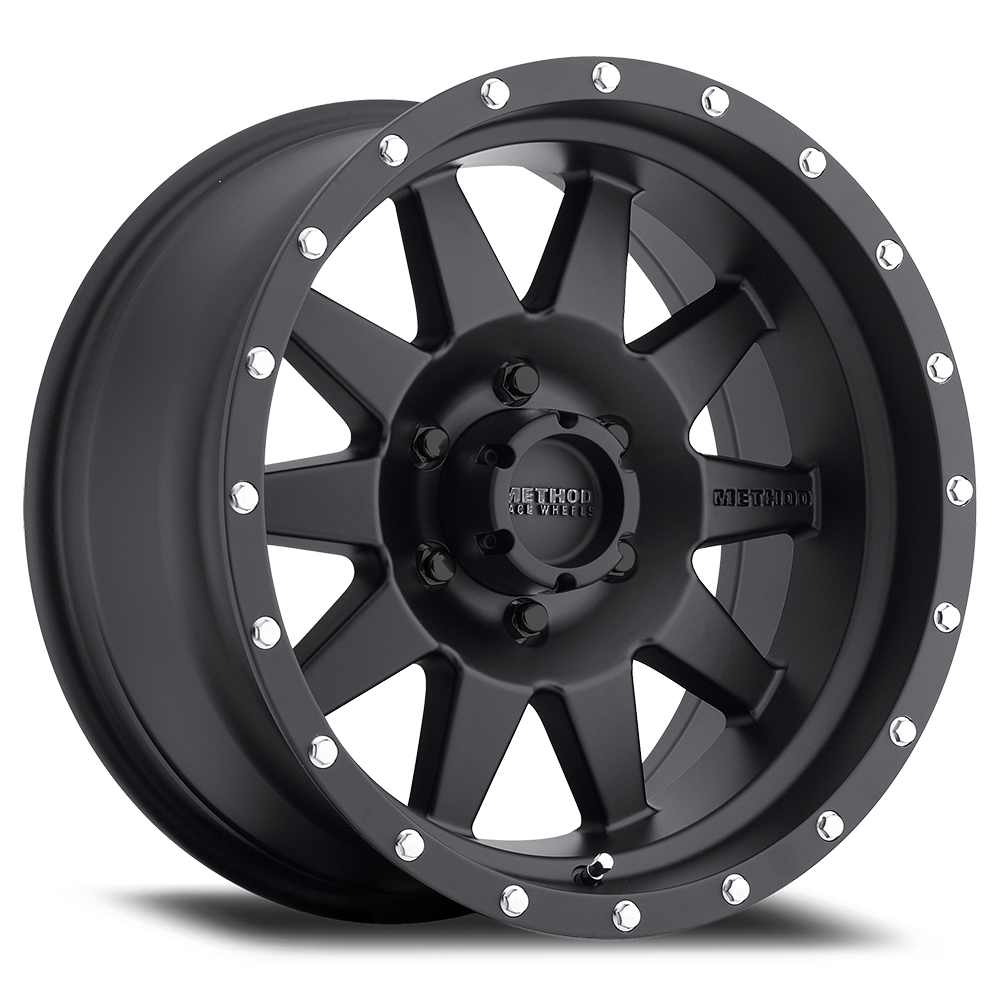

Method Race 301 Wheel Find them on Agile Off-road

17×7.5″ / 6.2″ backspacing / 50mm offset

Method Race 701 Wheel Find them on Agile Off-road

17×7.5″ / 50 mm offset / 3640 lb. load capacity (per wheel)

Method Race 702 Wheel Find them on Agile Off-road

Black Rhino Stadium

Black Rhino Arsenal

16” / 17”

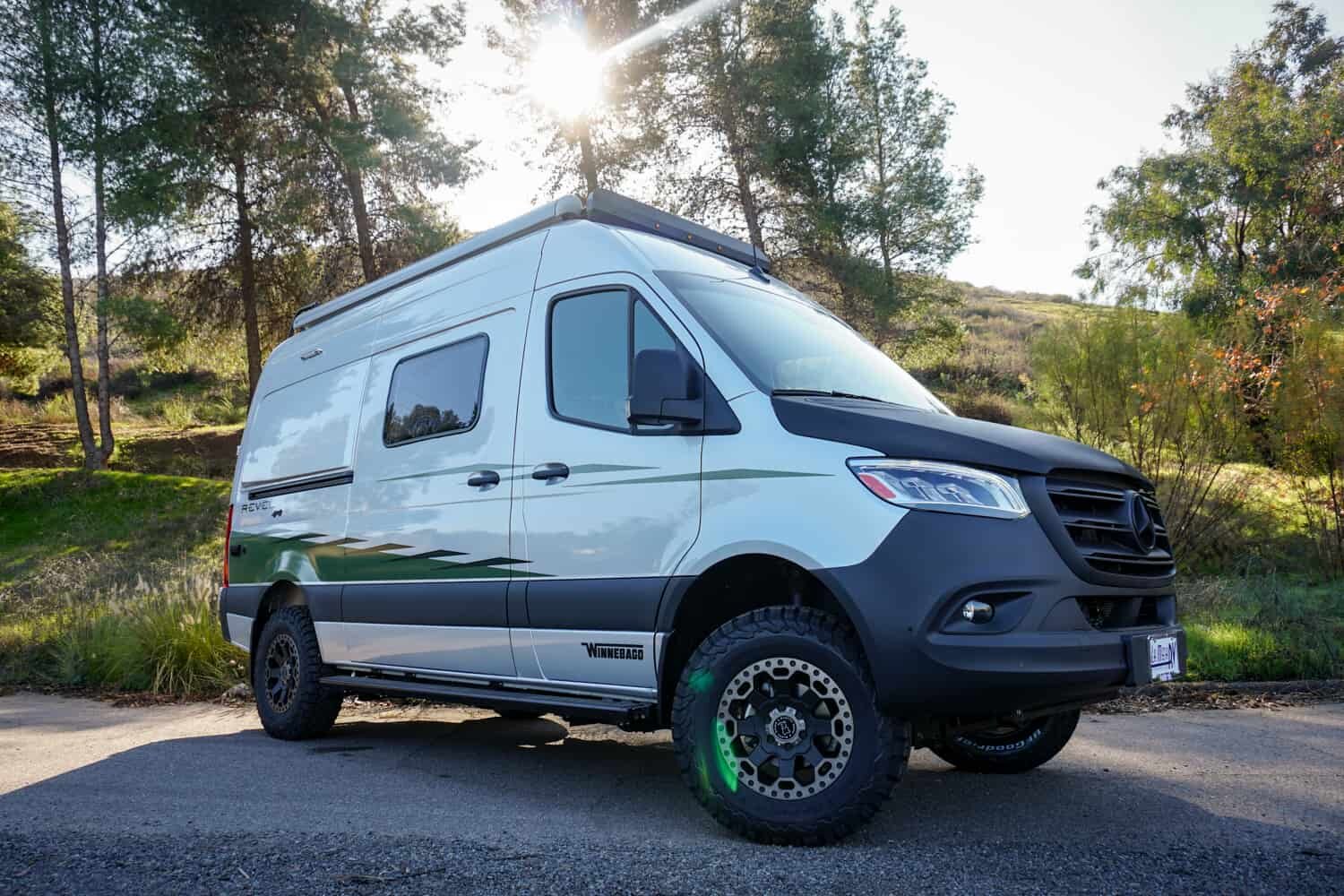

Black Rhino Warlord

16” / 17”

Black Rhino Warlord Find them on Agile Off-road

17x8” / 52 mm of offset / 2700 lb. load capacity (per wheel)

Black Rhino York

17X8 / 38mm - 17x8 / 52mm - 18X8 / 52mm

Black Rhino Overland

Black Rhino Journey

16x7.5 / +45mm offset

Black Rhino Havasu

Black Rhino

Fuel D538 Maverick

16x6.5 / +48mm offset

Black Rhino Bandolier

16x8 / +38mm / +45mm (According to Vehicle)

Moto Metal MO970

16x7” / 42mm offset

Forgiato Bespoke 1

18x7”

Dually Wheels

Black Rhino Destroyer
